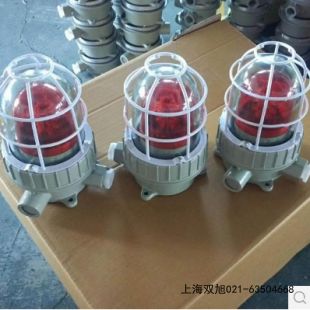

SJ-II聲光報警器
SJ-II聲光報警器產品介紹（中文）
SJ-II聲光報警器是一種集聲音與光信號于一體的工業安全警示設備，專為天車、行車、起重機、船舶、碼頭、油田及礦山等場景設計。該產品采用鋁合金壓鑄外殼結合噴塑工藝，具備良好的防水、防塵及抗鹽霧腐蝕性能，防護等級達IP56，適用于戶外惡劣環境。其核心采用集成電路設計，內置高亮度LED警示燈（可選紅/黃/藍三色），閃光頻率60-80次/分鐘，配合120分貝的宏亮報警音（音調可選警笛音、防空音等），有效穿透嘈雜工業環境。工作電壓覆蓋DC12V至AC380V多種規格，適配不同電力系統需求。產品結構緊湊（尺寸約250×480×220mm），安裝簡便，可通過壁掛或螺絲固定，并支持語音定制功能，適用于設備啟停、安全預警等場景。14612
SJ-II Sound & Light Alarm Product Introduction (English)
The SJ-II Sound & Light Alarm is an industrial safety warning device integrating audible and visual signals, designed for overhead cranes, gantry cranes, ships, docks, oil fields, and mining operations. Featuring an aluminum alloy casing with spray-coating treatment, it offers IP56-rated protection against water, dust, and salt spray corrosion. The unit employs high-brightness LED warning lights (red/yellow/blue options) flashing at 60-80 cycles/minute, synchronized with 120dB alarm sounds (selectable tones including siren or alert patterns), ensuring effective notification in noisy environments. Compatible with power supplies from DC12V to AC380V, its compact design (250×480×220mm) allows flexible wall-mounting or screw fixation. Custom voice prompts are available for equipment startup/shutdown or hazard warnings. The product s durable construction and stable performance make it suitable for long-term outdoor use in harsh industrial conditions.161424
產品特點（中文）
該報警器采用模塊化設計，內置音量調節電位器，用戶可根據現場需求調整報警強度。燈罩選用抗沖擊PC材料，配合ABS樹脂機身，重量輕且耐候性強。特殊密封工藝確保在震動、高濕環境下穩定工作，LED光源壽命超6萬小時。支持聲光同步觸發，可選配遙控或光控功能，部分型號具備斷電記憶特性。適用于冶金、化工、電力等行業的安全防護系統，能有效提醒作業人員注意設備運行狀態或潛在危險。461215
Key Features (English)
With modular design and built-in volume adjustment, the alarm allows customized warning intensity. The impact-resistant PC lens and ABS housing ensure lightweight durability, while advanced sealing technology guarantees reliability under vibration or humidity. LED lights exceed 60,000-hour lifespan. Supporting synchronized audio-visual alerts, optional remote/light-sensing controls and power-off memory function are available. Ideal for safety systems in metallurgy, chemical plants, and power facilities, it effectively notifies personnel of operational status or hazards.4111424
SJ-II聲光報警器
|
接線方法
|
|
|
|
電源線 引入口(CABLE ENTRY)
|
|
|
|
|
|
1.使用防水接頭或者船舶用填料函
|
|
|
2.電源線 接入口:標準規格 : PF 1/2
|
|
|
3.引入口 PF 3/4 尺寸可以定做
|
|
|
接線方法
|
|
|
1.AC交流電源產品：不用分正負極,直接連接電源.
|
|
|
2.DC直流電源產品：黑色線端子連接在負極(-)。
|
|
|
3.為了更**的連接,電源線的端部使用冷壓接線端子“O"型"U"型
|
|
|
|
