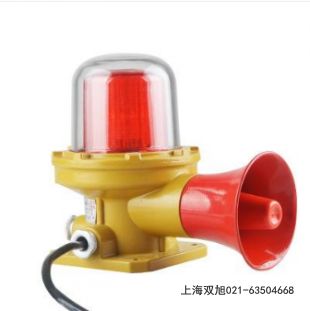

聲光報警器FMD-2004A
產品概述
FMD-2004A聲光報警器是一款專為工業環境設計的高效安全警示裝置，采用聲光同步報警機制，適用于冶金、化工、礦山、港口等多種復雜場景。該產品通過高亮度LED警示燈和強力蜂鳴器的組合，確保在嘈雜環境中仍能有效傳遞警報信息。其結構設計兼顧耐用性與環境適應性，外殼采用防腐蝕材料并經過特殊防水工藝處理，適合露天及惡劣工況使用。12
核心特點
該報警器具備多模式報警功能，提供三種可調音調（警車聲、消防聲、工程聲）和紅黃綠藍多色警示燈選擇，用戶可根據實際需求靈活配置。聲音傳播距離可達300米且近距離不刺耳，符合人體工程學設計；旋轉式警燈采用高透明材料，日光下可見度優異。一體化設計簡化了安裝流程，支持壁掛或膨脹螺絲固定，電源兼容12V-380V交直流寬電壓輸入。內置智能電路具有過載保護功能，確保長期穩定運行。278
應用場景
FMD-2004A廣泛應用于起重機械、推焦車、火車道口等移動設備的安全警示，能有效預防因設備啟動或運行引發的安全事故。在鋼鐵廠、焦化廠等場所，其防塵防震特性可應對高溫高濕環境；同時適用于消防應急系統，通過119標準報警聲和強光閃爍實現緊急疏散指引。產品還可與傳感器聯動，在輸送帶跑偏、料位異常時觸發自動報警。1512
Product Overview
The FMD-2004A audible and visual alarm is an industrial-grade safety warning device that combines high-intensity LED strobe lights with powerful audible alerts. Designed for harsh operating conditions including metallurgical plants, chemical facilities and mining sites, it features a corrosion-resistant housing with IP65 protection rating against dust and water ingress. The dual-alarm system ensures reliable notification even in high-noise environments exceeding 90dB. 216
Key Features
This alarm offers configurable alert modes with three selectable tones (siren, fire alarm and engineering alarm) and multi-color visual signals. The 360° rotating beacon provides 1800mcd minimum light intensity for clear visibility, while the 106dB horn maintains balanced volume for both long-range penetration (effective up to 300m) and near-field comfort. Its universal voltage input (12-380V AC/DC) simplifies power supply integration, and the compact design allows flexible mounting via wall brackets or magnetic base. 7818
Typical Applications
Ideal for mobile equipment like overhead cranes and locomotive crossings, the FMD-2004A significantly reduces accident risks through early warning. In steel mills and petrochemical plants, it withstands temperatures from -30°C to 70°C with consistent performance. The unit also serves critical roles in fire evacuation systems by emitting standardized 119-alert tones synchronized with flashing lights. Integration with conveyor belt sensors enables automatic triggering for material spillage prevention. 51220
聲光報警器FMD-2004A
|
接線方法
|
|
|
|
電源線 引入口(CABLE ENTRY)
|
|
|
|
|
|
1.使用防水接頭或者船舶用填料函
|
|
|
2.電源線 接入口:標準規格 : PF 1/2
|
|
|
3.引入口 PF 3/4 尺寸可以定做
|
|
|
接線方法
|
|
|
1.AC交流電源產品：不用分正負極,直接連接電源.
|
|
|
2.DC直流電源產品：黑色線端子連接在負極(-)。
|
|
|
3.為了更**的連接,電源線的端部使用冷壓接線端子“O"型"U"型
|
|
|
|
