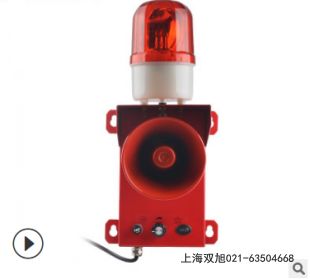

TBJ-150-G聲光報警器AL120
TBJ-150-G聲光報警器AL120產品介紹（中文）
TBJ-150-G聲光報警器AL120是一款專為工業安全設計的聲光警示裝置，適用于冶金、起重機械、港口碼頭、交通運輸?shù)阮I域的設備安全預警。該產品采用一體化設計，集成了高亮度旋轉警燈和宏亮報警音響，能夠在300米外清晰傳遞警示信號，近距離聲音宏亮但不刺耳，有效提醒工作人員注意安全。產品外殼采用低碳鋼板材料與進口油漆噴塑工藝，具有防水、防塵、抗強震等特性，適合露天惡劣環境使用。警燈采用旋轉式設計，配備高透明防護罩和鹵鎢燈泡，日光下可發出耀眼強光，夜間效果更佳。報警器支持三種不同音頻模式，用戶可根據實際需求選擇最佳音調和音量。安裝簡便，模塊化設計便于維護，可直接接入220V交流電源工作。適用于天車、推焦車、皮帶輸送機等設備的行走或啟動報警場景，幫助預防因設備啟動或運行異常導致的安全事故。1237
TBJ-150-G Audible and Visual Alarm AL120 Product Introduction (English)
The TBJ-150-G AL120 is an integrated audible and visual alarm designed for industrial safety applications, including metallurgy, crane operations, port terminals, and transportation systems. This device combines a high-intensity rotating warning light with a powerful alarm siren, capable of delivering clear warning signals up to 300 meters away. The alarm sound remains distinct yet non-irritating at close range, ensuring effective personnel alerting. Constructed with low-carbon steel plates and imported paint spraying technology, the housing features waterproof, dustproof, and shock-resistant properties suitable for harsh outdoor environments. The warning light utilizes a rotating mechanism with high-transparency protective cover and halogen bulbs, producing visible flashes in daylight and enhanced visibility at night. Three selectable audio modes allow users to optimize tone and volume for different scenarios. With simplified installation and modular maintenance design, the alarm operates directly on 220V AC power. Typical applications include safety alerts for overhead cranes, coke pushers, and conveyor systems during equipment movement or startup procedures. 16922
產品功能特點（中文）
該報警器具有多重實用功能：聲音系統采用符合人體生理特點的音頻設計，確保穿透力與舒適度平衡；燈光系統通過間歇式閃爍增強警示效果，LED頻閃燈選項可提供更長壽命的照明方案。產品支持語音定制功能，可預錄"設備啟動請注意"等六種安全提示語音，適應不同工業場景需求。電路采用防風雨工藝處理，內部元件經過防水灌注技術保護，能在-20℃至60℃環境下穩定工作。觸發方式簡單，接通220V電源即可立即啟動聲光報警，無需額外控制設備。旋轉警燈的不銹鋼防護罩可承受機械沖擊，透明燈罩材料耐高溫且抗老化，整體結構緊湊，尺寸為370×160×140mm（高×長×寬），便于在各種設備上安裝。9121723
Product Features (English)
Key functionalities include: an audio system engineered with physiological considerations to balance sound penetration and listening comfort; a visual warning system with intermittent flashing patterns, optionally equipped with long-life LED strobe lights. The device offers customizable voice alerts with six pre-recorded safety messages like "Equipment starting, please notice" for diverse industrial scenarios. Weatherproof circuit design features potting technology for internal components, ensuring reliable operation from -20℃ to 60℃. Simple 220V power connection enables instant activation without auxiliary controls. The rotating beacon s stainless steel guard withstands mechanical impacts while high-temperature-resistant transparent covers prevent aging. Compact dimensions (370×160×140mm H×L×W) facilitate flexible mounting on various equipment. The unified housing integrates both audible and visual elements with maintenance-friendly modular construction. 11152529
TBJ-150-G聲光報警器AL120聲光報警器TBJ-150-G
產品簡介：
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
技術參數：
TBJ-150-G
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
TBJ-150-G
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
