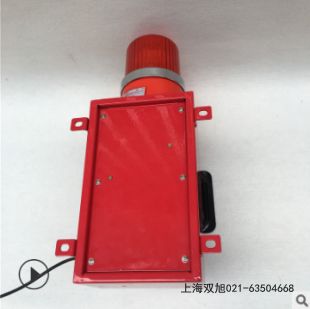

KHY-SR-1聲光報警器FMD-116產品介紹
【中文版】
KHY-SR-1聲光報警器FMD-116是一款集成聲光警示功能的安全設備，適用于工業現場、倉儲物流、公共設施等多種場景的安全預警需求。該產品通過視覺與聽覺雙重警示模式，幫助工作人員快速識別異常情況，有效提升現場安全管理效率。
產品采用模塊化設計理念，搭載高亮度LED警示燈和定向擴音系統。在觸發狀態下，設備可同步發出穿透力達120分貝的蜂鳴警報與360度可見的強光閃爍信號。其多級警示模式可根據不同場景需求調節聲光組合方式，包括持續警報、間歇閃爍、變頻提示等多種工作模式，滿足差異化預警需求。
核心組件選用耐候性材料制造，主體結構具備防塵防潮特性，可在-20℃至+70℃環境溫度范圍內穩定運行。緊湊型外觀設計兼顧安裝靈活性，提供立柱固定、墻面懸掛、支架連接等多種安裝選項。設備內置智能識別芯片，支持直流12-24V寬電壓輸入，兼容主流控制系統的干接點信號觸發機制。
該產品適用于機械制造、能源電力、交通樞紐等場景的設備異常預警、區域安全防護及緊急狀態提醒。人性化設計體現在兩個方面：警示燈光采用特定波長組合，避免產生眩目效應；音頻輸出經過專業頻段優化，確保警示音清晰可辨的同時降低環境噪音干擾。
產品優勢：
- 多模式警示：支持8種聲光組合方案，可通過撥碼開關快速切換
- 低功耗運行：待機電流＜5mA，工作狀態下整機功耗≤15W
- 長效使用壽命：核心光源壽命＞50,000小時，音頻單元耐久測試＞10萬次
- 簡易維護：模塊化結構支持快速部件更換，無需專業工具即可完成基礎維護
技術參數：
- 光源強度：≥2000流明（紅色/藍色可選）
- 音頻頻率：800Hz-3.5KHz可調
- 響應時間：＜0.3秒
- 外形尺寸：Φ180×260mm
- 凈重：1.8kg
我們?yōu)槊颗_(tái)設備提供完善的售前技術咨詢與售后維保支持，確保用戶獲得可靠的產品使用體驗。
【English Version】
The KHY-SR-1 Sound & Light Alarm FMD-116 is an integrated safety warning device designed for industrial plants, logistics warehouses, public facilities and other scenarios requiring safety alerts. By combining visual and auditory warning signals, it enables rapid identification of abnormal situations, significantly improving on-site safety management efficiency.
Featuring a modular design concept, the device incorporates high-intensity LED warning lights and a directional audio amplification system. When activated, it simultaneously generates a 120dB penetrating siren and 360-degree visible strobe lighting. With multi-stage alert modes, users can adjust sound-light combinations according to operational needs, including continuous alarm, intermittent flash, and variable frequency patterns.
Constructed with weather-resistant materials, the main body demonstrates dustproof and moisture-resistant characteristics, maintaining stable operation within -20℃ to +70℃ temperature ranges. Its compact design allows flexible installation via pole mounting, wall brackets or custom fixtures. The built-in smart recognition chip supports 12-24V DC wide voltage input and is compatible with dry contact signal triggers from mainstream control systems.
This product is suitable for equipment abnormality alerts, area security protection, and emergency notifications in manufacturing, energy systems, transportation hubs and similar environments. Human-centric design features include: optimized light wavelengths to prevent glare effects, and professionally tuned audio frequencies that ensure clear signal recognition while minimizing ambient noise interference.
Product Highlights:
- Multi-mode Alert: 8 customizable sound-light combinations selectable via DIP switches
- Energy Efficiency: Standby current <5mA, operational power consumption ≤15W
- Extended Service Life: Core light source >50,000 hours, audio unit durability tested >100,000 cycles
- Maintenance Friendly: Modular structure enables quick component replacement without specialized tools
Technical Specifications:
- Light Intensity: ≥2000 lumens (Red/Blue optional)
- Frequency Range: 800Hz-3.5KHz adjustable
- Response Time: <0.3 seconds
- Dimensions: Φ180×260mm
- Net Weight: 1.8kg
Comprehensive pre-sales consultation and after-sales support services ensure reliable product performance throughout its operational lifecycle.
