TBJ-150C聲光報警器
產品概述
TBJ-150C聲光報警器是一款專為工業環境設計的安全警示設備，適用于大型起重機械、港口碼頭、冶金企業等場所。該產品采用聲光一體化設計，通過高亮度警示燈和宏亮音響實現雙重警示效果，有效提醒現場人員注意設備運行狀態，預防安全事故發生。產品具有防水防塵結構，適應露天惡劣環境，安裝簡便且操作直觀。123
核心特點
該報警器配備5W/25W大功率音響系統，聲音穿透力強，300米外仍可清晰辨識；旋轉式警燈采用不銹鋼防護罩保護，具有高亮度和耐沖擊特性。電路采用防風雨工藝處理，確保在復雜工況下穩定運行。產品支持220V交流電直接觸發，響應迅速，且提供多種音調模式可選，可根據實際需求調節音量大小。458
應用場景
主要應用于天車、行車、起重機等移動設備，以及輸送帶、港口機械等固定設備的安全預警。其顯著特點是在日光環境下仍能通過耀眼的閃光和穿透性聲音有效吸引注意力，特別適合冶金、礦山、化工等存在環境噪聲和視覺干擾的工業場所。產品結構緊湊，外殼采用金屬噴塑材質，兼顧耐用性與美觀度。111316
技術參數
工作電壓為AC220V/50Hz，警燈直徑150mm，外形尺寸435×180×155mm（高×長×寬）。音響系統提供三種可切換報警音效，音量調節范圍適應不同距離需求。燈罩可選紅/黃/藍等醒目顏色，閃亮頻率60-80次/分鐘，確保警示效果持續顯著。202326
Product Introduction
The TBJ-150C audio-visual alarm is an industrial-grade safety warning device designed for large-scale mobile equipment and hazardous working environments. Its integrated design combines high-intensity flashing lights with powerful audible alerts, creating a dual warning system that effectively captures attention in noisy industrial settings such as steel plants, mining sites, and port operations. The product features rugged construction with weather-resistant properties for reliable outdoor performance.1412
Key Features
Equipped with 5W/25W high-output speakers, the alarm delivers penetrating sound audible up to 300 meters. The rotating beacon light, protected by stainless steel housing, ensures 360° visibility even in direct sunlight. The circuit board employs special waterproof treatment to withstand harsh conditions including rain, dust, and vibration. With plug-and-play 220V AC operation and multiple selectable alert tones, the device offers flexible configuration for diverse application scenarios.81519
Applications
Ideal for installation on overhead cranes, conveyor systems, and marine equipment, this alarm serves as a critical safety component by providing timely warnings during equipment startup or emergency situations. Its compact all-in-one design simplifies installation while maintaining high visibility through polycarbonate light diffusers and corrosion-resistant metal casing. The product is particularly effective in environments requiring long-distance visual and audible signaling.111722
Specifications
Operating at standard 220V AC voltage with 50Hz frequency, the unit houses a 150mm diameter warning light. The modular construction allows easy maintenance, featuring adjustable volume control and three distinct alert modes. Available in multiple color options (red/yellow/blue), the flashing light achieves 60-80 pulses per minute for optimal attention-grabbing effect. The overall dimensions are designed for versatile mounting on various industrial equipment.232628

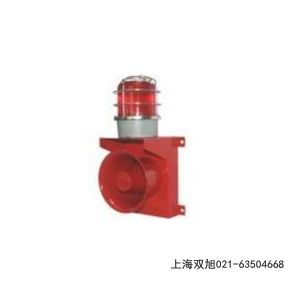

TBJ-150C聲光報警器
TBJ-150C聲光報警器
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
TBJ-150C聲光報警器
